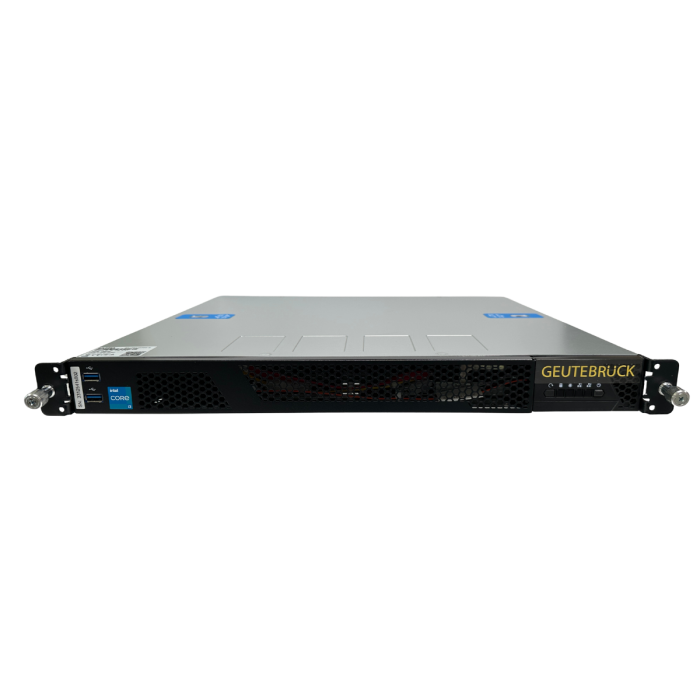

Hardware platform for Geutebrück software solutions
G-ST 700
- Microsoft Windows 11 IoT Enterprise LTSC
- Powered by Intel 12gen. IoT
- 16 GB DDR5 RAM for even more performance
- Up to 22TB with 3,5“-HDD storage bay
- 19" 1U short (356mm) rack mount
Please contact a sales representative for pricing information, configuration options and ordering.
Software
Operating System:
Windows 11 IoT Enterprise LTSCCompatibility with G-Core:
8.1 or newer with GPU supportCompatibility with G-SIM:
10.0.2, 11.0 or later with GPU supportRecommendations*
Record:
560 Mbit/s database; 20 channels*Viewer:
Viewer: 280 Mbit/s; 20 channels*G-Tect:
AD: 20channels, VMD: 20 channels,
VMX: 20 channelsMemory
System:
1x 256GB M.2 SSDImage memory:
1x HDD (max. 22TB)System
Processor:
Intel Core i3-12100 12th gen. IoTMemory RAM:
16GB DDR5 dual channelVideo outputs:
4x DisplayPort V1.4a, 1x eDP V1.4b (Recommended use: max.2)Audio output:
1x stereo (line out, phone jack 3.5mm),
display portUSB:
3x USB 3.2(Gen2) TypeA,
2x USB 3.2(Gen1) TypeA,
1x USB 3.2(Gen2) TypeC,
2x USB 2.0Network interfaces:
1x Port 10/100/1000 MBit/s base-TX iAMT
1x Port 10/100/1000/2500 MBit/sOther interfaces:
Power supply:
100 - 240 V AC / 60 - 50 Hz ±10%, 200WPower consumption:
approx. 80WEnvironment
Operating temperature:
5°C to +35°C
Weight:
Approx. 5.0 kg netForm factor:
1U / 1HEDimensions:
1U x 356 mmCertifications
CE
Warranty
3 years (opt. 5 years)
Accessories
Image storage:
HDD image storage 2-22 TB*Configuration: G-ST 700 Video source: Scene OutdoorLively, 25fps, H.264, FullHD. Each test was performed separately. In combination the values are lower.
Order no. 0.60073
The short 19" 1U hardware platform ensures optimal interaction with the Geutebrück software.
Can be used as a standalone video management system unit or in a network solution for multiple stores or facilities. Also suitable as an all-in-one VMS solution for small video systems.
HW standard components: 16 GB DDR5 (Dual Channel), 256GB M.2 SSD, 2x Ethernet, 4x DisplayPort V1.4a, 1x eDP V1.4b (Recommended use: max.2)
Optional HW components:
- HDD image storage 2-22 TB
For further technical information please refer to the data sheet.
- Optimized for small projects with up to 20 cameras, such as post offices, petrol stations, warehouses, etc.
- Fits into small racks due to the highly minimized design
- Protection of the building against intrusion by unauthorized persons
- Suitable for high video quality requirements
