Hardware platform for Geutebrück software solutions

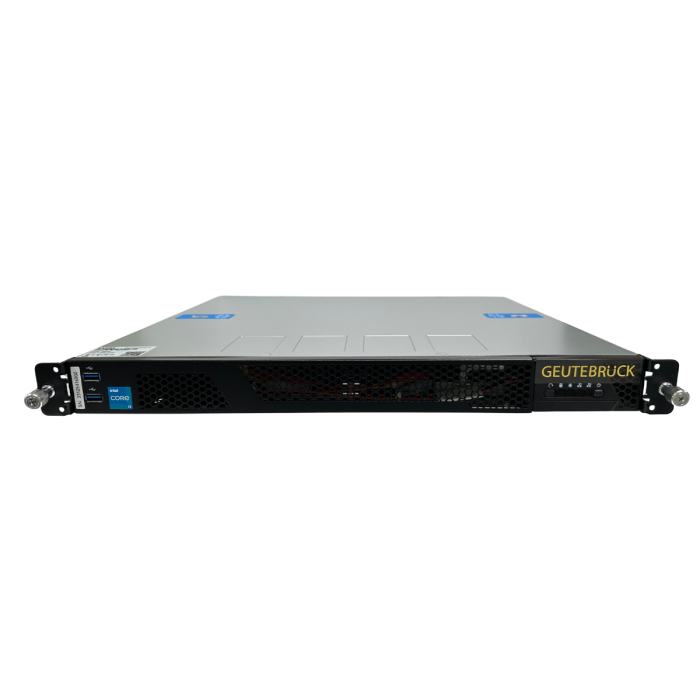

G-ST 700 Perimeter+
- Microsoft Windows 10 IoT Enterprise LTSC
- Powered by Intel 12gen. IoT
- 16 GB DDR5 RAM for even more performance
- 19" 1U short (407 mm) rack mount
Please contact a sales representative for pricing information, configuration options and ordering.
Software
Operating System:
Windows 10 IoT Enterprise LTSCPerformance*
Perimeter+ Analytics:
4 channels*Memory
System:
1x 256GB M.2 SSDSystem
Processor:
Intel Core i3-12100 12th gen. IoTMemory RAM:
16GB DDR5 dual channelVideo outputs:
4x DisplayPort V1.4a, 1x eDP V1.4b (Recommended use: max.2)Audio output:
1x stereo (line out, phone jack 3.5mm),
display portUSB:
3x USB 3.2(Gen2) TypeA,
2x USB 3.2(Gen1) TypeA,
1x USB 3.2(Gen2) TypeC,
2x USB 2.0Network interfaces:
1x Port 10/100/1000 MBit/s base-TX iAMT
1x Port 10/100/1000/2500 MBit/sOther interfaces:
Power supply:
100 - 240 V AC / 60 - 50 Hz ±10%, 200WPower consumption:
approx. 80WEnvironment
Operating temperature:
5°C to +35°C
Weight:
Approx. 5.0 kg netForm factor:
1U / 1HEDimensions:
1U x 407 mmCertifications
CE
Warranty
3 years (opt. 5 years)
*Configuration: G-ST 700 Video source: Scene OutdoorLively, 25fps, H.264, FullHD. Each test was performed separately. In combination the values are lower.
Order no. 0.60071
The short 19" 1U hardware platform ensures optimal interaction with the Geutebrück Perimeter+ software.
HW standard components: 16 GB DDR5 (Dual Channel), 256GB M.2 SSD, 2x Ethernet, 4x DisplayPort V1.4a, 1x eDP V1.4b (Recommended use: max.2)
For further technical information please refer to the data sheet.
- Optimized for small Perimter+ projects with up to 4 cameras.
- Fits into small racks due to the highly minimized design
- Protection of the building against intrusion by unauthorized persons
- Suitable for high video quality requirements
