Hardware platform for Geutebrück G-Car Videoanalyse software
G-ST 700 G-Car
- Linux Ubuntu 22.04 LTS OS
- Powered by Intel 12gen. IoT
- 16 GB DDR5 RAM for even more performance
- 19" 1U short (407mm) rack mount
Please contact a sales representative for pricing information, configuration options and ordering.
Software
Operating System:
Linux Ubuntu 22.04 LTSPerformance*
G-Car Analytics:
5 channels*Memory
System:
1x 256GB M.2 SSDSystem
Processor:
Intel Core i3-12100 12th gen. IoTMemory RAM:
16GB DDR5 dual channelVideo outputs:
4x DisplayPort V1.4a, 1x eDP V1.4b (Recommended use: max.2)Audio output:
1x stereo (line out, phone jack 3.5mm),
display portUSB:
3x USB 3.2(Gen2) TypeA,
2x USB 3.2(Gen1) TypeA,
1x USB 3.2(Gen2) TypeC,
2x USB 2.0Network interfaces:
1x Port 10/100/1000 MBit/s base-TX iAMT
1x Port 10/100/1000/2500 MBit/sOther interfaces:
Power supply:
100 - 240 V AC / 60 - 50 Hz ±10%, 200WPower consumption:
approx. 80WEnvironment
Operating temperature:
5°C to +35°C
Weight:
Approx. 5.0 kg netForm factor:
1U / 1HEDimensions:
1U x 407 mmCertifications
CE
Warranty
3 years (opt. 5 years)
*Configuration: G-ST 700 Video source: Scene OutdoorLively, 25fps, H.264, FullHD. Each test was performed separately. In combination the values are lower.
Order no. 0.60072

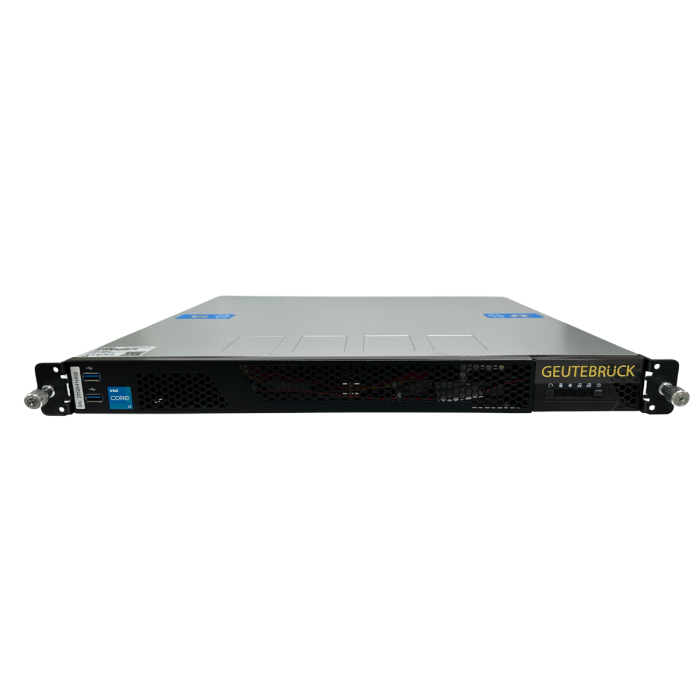

The short 19" 1U hardware platform ensures optimal interaction with the Geutebrück software.
Can be used as a standalone video management system unit or in a network solution for multiple stores or facilities. Also suitable as an all-in-one VMS solution for small video systems.
HW standard components: 16 GB DDR5 (Dual Channel), 256GB M.2 SSD, 2x Ethernet, 4x DisplayPort V1.4a, 1x eDP V1.4b (Recommended use: max.2)
For further technical information please refer to the data sheet.
- Optimized for for up to 5 lanes
- Fits into small racks due to the highly minimized design
- Vehicle Yard Management
- Suitable for high video quality requirements
