Hardware platform for Geutebrück software solutions

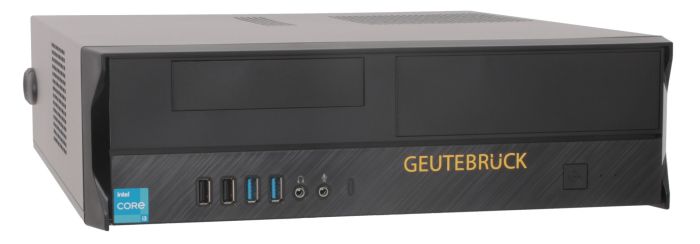

G-ST 800 G-Car
- Linux Ubuntu 22.04 LTS OS
- Powered by Intel 12gen. IoT
- 16 GB DDR5 RAM for even more performance
- S.F.F. Desktop Case 330 x 96 x 411 mm
Please contact a sales representative for pricing information, configuration options and ordering.
Software
Operating System:
Linux Ubuntu 22.04 LTSPerformance*
G-Car Analytics:
5 channels*Memory
System:
1x 256GB M.2 SSDSystem
Processor:
Intel Core i3-12100 12th gen. IoTMemory RAM:
16GB DDR5 dual channelVideo outputs:
4x DisplayPort V1.4a
(Recommended use: max.2)Audio output:
1x stereo (line out, phone jack 3.5mm),
display portUSB:
2x USB 3.2(Gen2) TypeA,
2x USB 3.2(Gen1) TypeA,
2x USB 2.0Network interfaces:
10/100/1000 MBit/s base-TXOther interfaces:
Power supply:
110 - 240 V AC / 60 - 50 Hz ±10%, 300WPower consumption:
approx. 80WEnvironment
Operating temperature:
5°C to +35°C
Weight:
Approx. 7.0 kg netForm factor:
S.F.F.Dimensions:
330 x 96 x 411 mmCertifications
CE
Warranty
3 years (opt. 5 years)
Accessories
Network interfaces
5.35466 | 1 Port Gbit network card PCIe
5.35465 | 2 Port Gbit network card PCIe*Configuration: G-ST 800 Video source: Scene OutdoorLively, 25fps, H.264, FullHD. Each test was performed separately. In combination the values are lower.
Order no. 0.60082
HW standard components: 16 GB DDR5 (Dual Channel), 256GB M.2 SSD, 2x Ethernet, 4x DisplayPort V1.4a, 1x eDP V1.4b (Recommended use: max.2)
Optional HW components:
- 5.35466 | 1 Port Gbit network card PCIe
- 5.35465 | 2 Port Gbit network card PCIe
For further technical information please refer to the data sheet.
- Optimized for up to 5 lanes
- Small Desktop Case due to the highly minimized design
- Vehicle Yard Management
- Suitable for high video quality requirements
